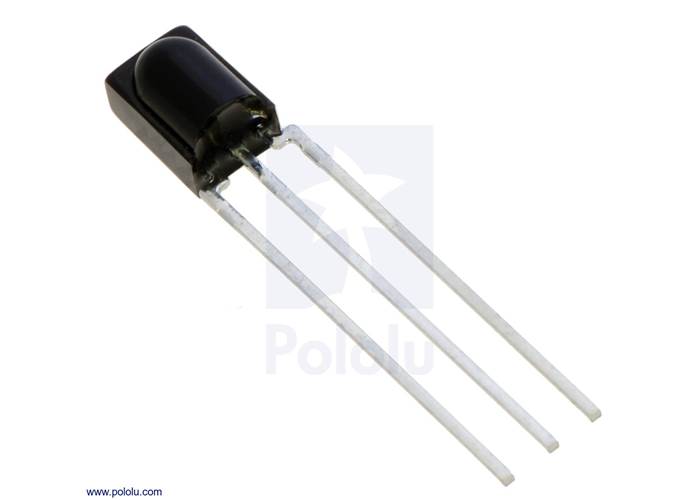

The Vishay TSOP38438 is a general-purpose modulated IR receiver for IR-based remote-control projects. It features a wide operating voltage range of 2.5 V to 5.5 V; this particular unit is tuned for a 38 kHz carrier frequency.
Special Order
Shipping from $9.90
+40 more from our supplier in 7-10 days
Our Code: SKU-003248
Supplier Link: [Pololu MPN:2471]
The Vishay TSOP38438 is a general-purpose modulated IR receiver for IR-based remote-control projects. It features a wide operating voltage range of 2.5 V to 5.5 V; this particular unit is tuned for a 38 kHz carrier frequency.
This IR demodulator from Vishay is a general-purpose receiver for IR-based remote-control projects. It is intended as detector for data formats that are modulated at 38 kHz and have at least 10 cycles/burst; popular IR-codes that meet these requirements are NEC, Sharp, and r-step (our Mini IR Remote Control uses NEC encoding, so it works well with the TSOP38438). The module’s output signal can be directly connected to a microcontroller; no additional external components are required. See the TSOP38438 datasheet (132k pdf) for more information.
For a similar IR detector that is tuned for a 56 kHz carrier frequency, see the Vishay TSOP34156.
| Part | TSOP34156 | TSOP38438 | TSSP58P38 | TSSP58038 |
|---|---|---|---|---|
| Intended function | IR remote control | brightness/proximity sensing | predictable modulated IR presence sensing | |
| Modulation frequency | 56 kHz | 38 kHz | 38 kHz | 38 kHz |
| Gain (sensitivity) | automatic but inaccessible | automatic, predictable | fixed high gain | |
| Output | binary (data) | analogue (pulse width) | binary (on/off) | |
| Update rate | a few kHz | a few Hz | a few kHz | |
See the TSOP384 datasheet (132k pdf) for more detailed specifications.
Datasheet for the Vishay TSOP382 and TSOP384 lines of IR receiver modules for remote control systems.
