PCB01A 5" Round Prototyping PCB

This round printed circuit board is a general-purpose prototyping board for developing your own custom electronics designs. Slightly larger than a CD, this PCB also fits the round robot chassis perfectly. With 1,780 holes, the board has ample space for most projects.

AUD$ 28.95

In stock in Australia

No Stock Available

Our Code: CCW-20024

Supplier Link: [Pololu MPN:550]


Overview

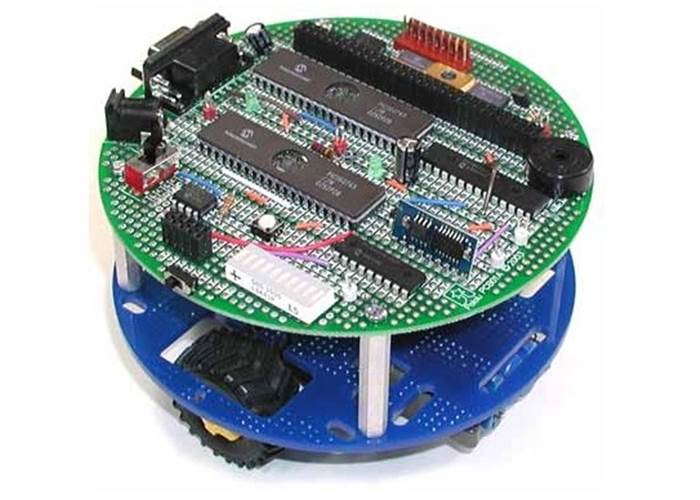

The Pololu 5" round prototyping printed circuit board (PCB) is a general-purpose prototyping board for developing your own custom electronics designs. Slightly larger than a CD, the round PCB is unique because of its circular shape, which matches perfectly with the round robot chassis using standoffs. The circular PCB is also well-suited to other applications in which aesthetic considerations or size constraints make a round PC board preferable.

This high-quality, double-sided prototyping PCB has a total of 1,780 plated-through holes, most of which are 0.042" in diameter. The PCB has a solder mask on both sides, enabling cleaner soldering and preventing short circuits. Many of the pads are connected in groups of three to make for easy prototyping, with the connections clearly indicated on the top silkscreen. All holes are on a 0.1" grid, except for special footprints (hole patterns) for a DB9 connector, a DC power jack, and a switch. (These footprints are positioned so that the corresponding components fit within the 5" circle, without sticking out.)



Features

  • 5" diameter circular PC board
  • Standard 0.1" grid
  • 1,780 plated-through holes
    • 1,733 general-purpose, 0.042"-diameter holes
    • 26 larger, 0.068"-diameter holes on bus strips for test points or thicker wires
    • Four 0.125" mounting holes compatible with the round robot chassis
  • Special footprints for a DB9 connector, DC power jack, and switch
  • Ten bus strips
  • Most pads connected in groups of two or three, similar to a breadboard
  • Silkscreen clearly indicates connections
  • Solder mask on both sides
