Logic Pro 8 - USB Logic Analyzer

AUD $2,009.95

Order As Required

Back orders: Ship 10 units in 7 days

Our Code: SKU-002068

Supplier: [SparkFun MPN:13196]

Do you need big logic analysis in a small package? That’s exactly what the Logic Pro 8 brings you. The Logic Pro 8 is a 8-channel USB logic analyser with so much style it’ll make your cell phone jealous.


Description

Do you need big logic analysis in a small package? That’s exactly what the Logic Pro 8 brings you. The Logic Pro 8 is a 8-channel USB logic analyser with so much style it’ll make your cell phone jealous. Simply connect it to your computer with the included USB 3.0 cable, attach your test probes and install the Saleae Logic software and you’ll be debugging in no time. Along with adding 4 more channels of signal capture, the Logic Pro 8 differs from the Logic 4 by increasing the max sample rate, and adding support for 1.8V logic levels.

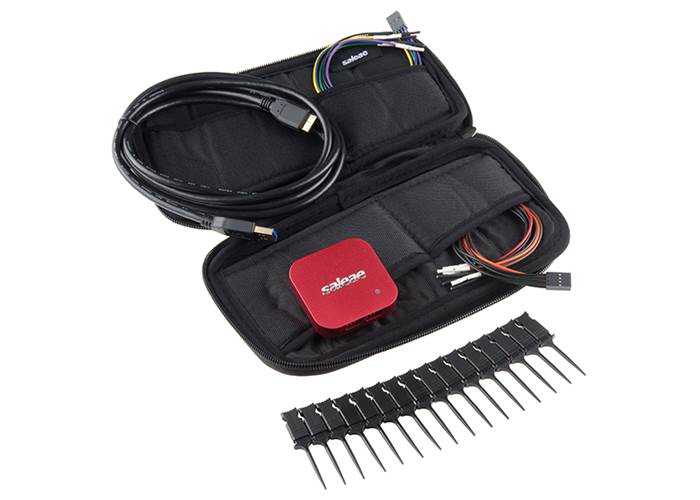

The Logic Pro 8 has a rugged, custom-machined aluminium enclosure and can be carried in the included zip-up carrying case (which is small enough to toss in your laptop bag). This is a great field diagnostic tool as well as a welcome addition to any workbench.

Dimensions: 2.1" x 2.1" x .46" ( 53 x 53 x 12 mm )

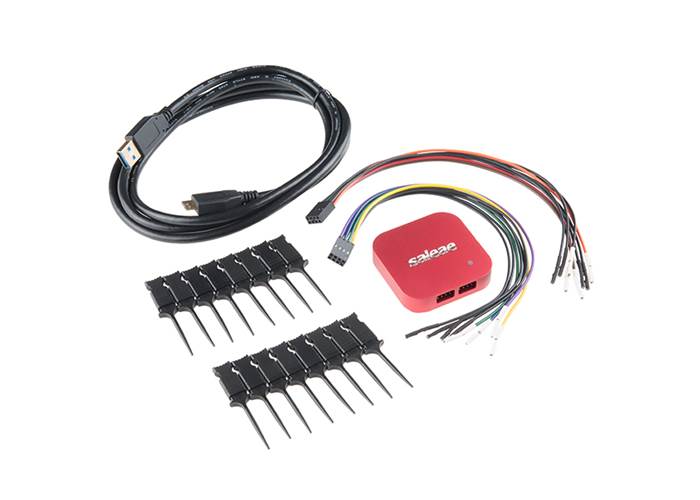

Includes:

  • 1x Logic Pro 8
  • 1x USB A to USB 3.0 Cable
  • 2x Ultra-Flexible Test Lead Set

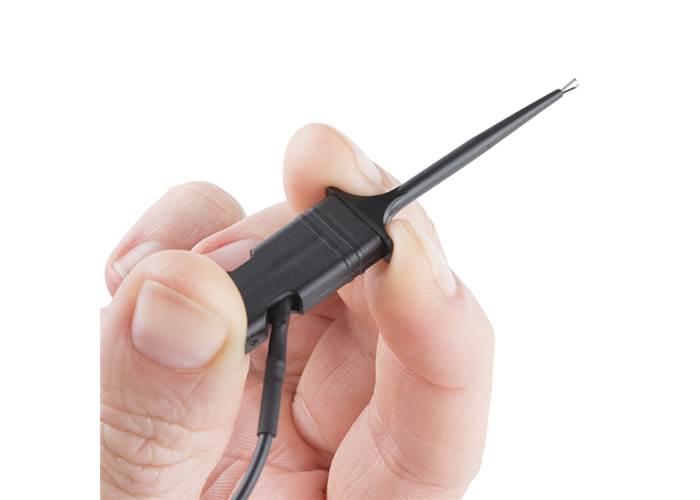

  • 16x Micro Hook Clips

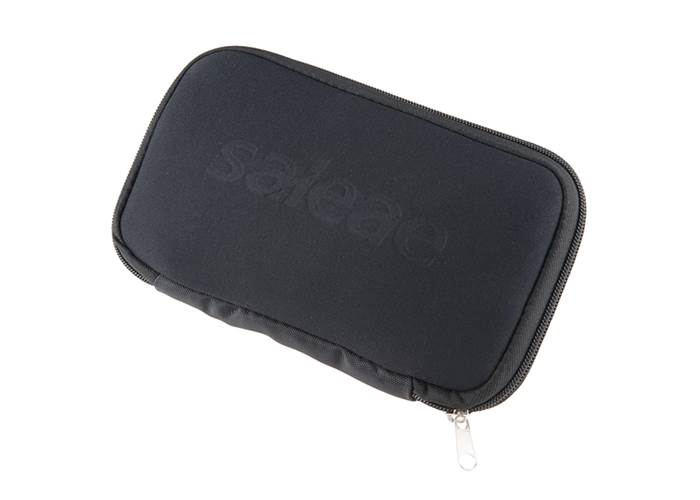

  • 1x Custom Carrying Case

Specifications

  • Eight Multi-Use Inputs - Analogue/Digital/Both
  • Digital Sample Rate: 500 MS/s (Max)
  • Analogue Sample Rate: 50 MS/s (Max)
  • Fastest Digital Signal: 25 MHz
  • Supported Logic Levels (Digital): 1.2V-5.5V
  • Input Voltage Range (Analogue): 0V-5V
  • Bandwidth (Analogue): 1MHz
  • Number of bits (Analogue): 10 bits
  • Works with RS-232, 422/3 Directly
  • USB 3.0
