LED - Basic Yellow 5mm

AUD $0.50

Order As Required

Back orders: Ship 649 units in 7 days

Our Code: SKU-000466

Supplier: [SparkFun MPN:9594]

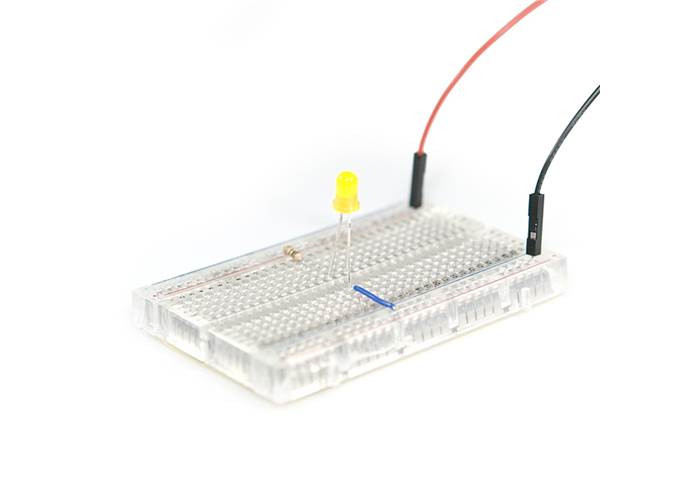

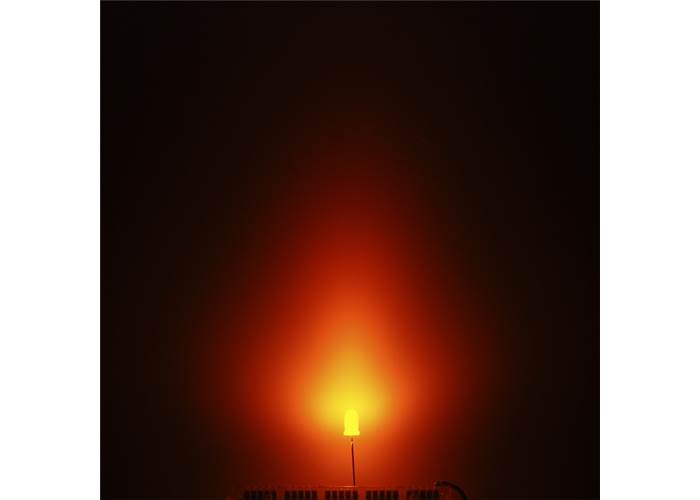

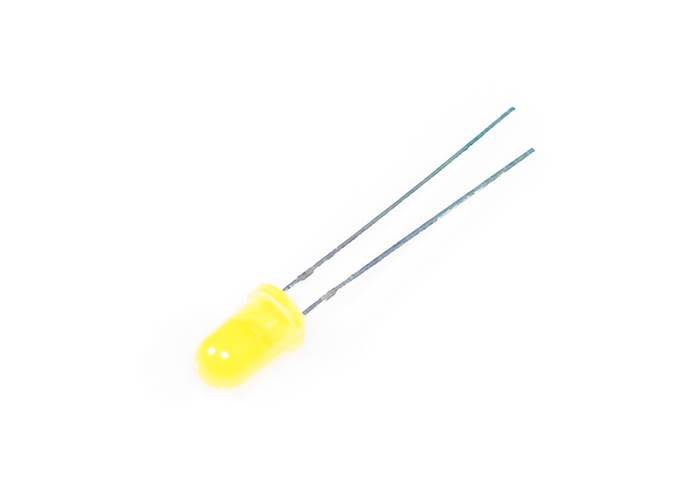

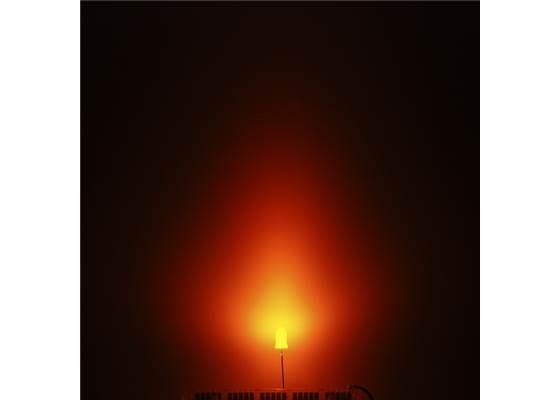

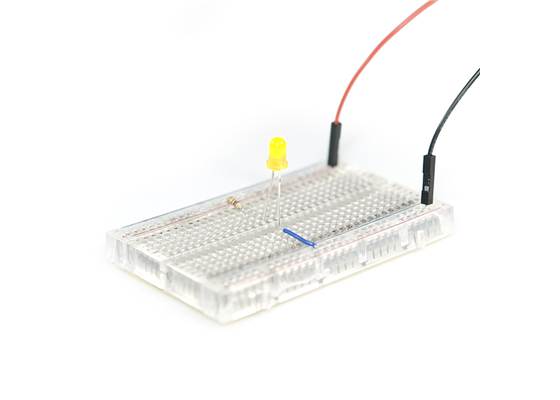

LEDs - those blinky things. A must have for power indication, pin status, opto-electronic sensors, and fun blinky displays. This is a very basic 5mm LED with a yellow lens. It has a typical forward voltage of 2.0V and a rated forward current of 20mA.


Description

LEDs - those blinky things. A must have for power indication, pin status, opto-electronic sensors, and fun blinky displays.

This is a very basic 5mm LED with a yellow lens. It has a typical forward voltage of 2.0V and a rated forward current of 20mA.


Specifications

  • 1.8-2.2VDC forward drop
  • Max current: 20mA
  • Suggested using current: 16-18mA
  • Luminous Intensity: 150-200mcd
