A5984 Stepper Motor Driver Carrier, Fixed 1A@5V / 660mA@3.3V, Blue Edition (Soldered Header Pins)

This version is item #5346 with soldered header pins , so no soldering is required to use it with an appropriate 16-pin socket or solderless breadboard. It has a fixed current limit of 1 A when VDD is 5 V or 660 mA when VDD is 3.3 V and a four-layer PCB for better thermal performance.

AUD$ 7.95

Special Order

Shipping from $7.90

+65 more from our supplier in 7-10 days

Our Code: SKU-010647

Supplier Link: [Pololu MPN:5347]


Description

Overview

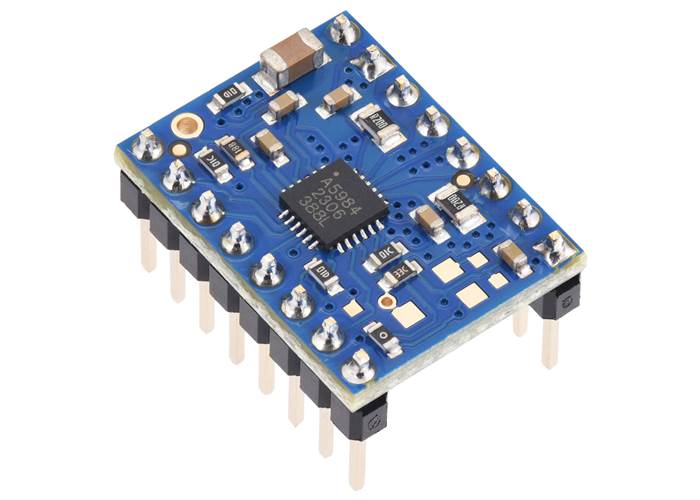

A5984 Stepper Motor Driver Carrier, Fixed 1A@5V / 660mA@3.3V, Blue Edition (Soldered Header Pins).

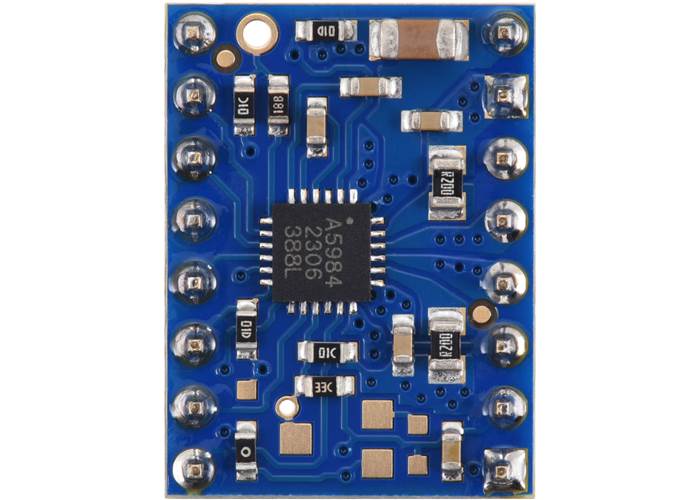

A5984 Stepper Motor Driver Carrier, Fixed 1A@5V / 660mA@3.3V, Blue Edition (Soldered Header Pins), top view.

This product is the A5984 carrier with a fixed current limit of 1 A (VDD = 5 V) or 660 mA (VDD = 3.3 V). This version has soldered headers as shown in the pictures above, so no soldering is required to use it with an appropriate 16-pin socket or solderless breadboard. See the item #5346: A5984 Stepper Motor Driver Carrier, Fixed 1A@5V / 660mA@3.3V, Blue Edition product page for more information about this driver.


Specifications

Dimensions

Size: 0.6″ × 0.8″
Weight: 2.5 g

General specifications

Current limit: ​fixed 1A@5V / 660mA@3.3V
Header pins: soldered

Identifying markings

PCB dev codes: md46b
Other PCB markings: 0J15026
