This version is item #5342 with soldered header pins , so no soldering is required to use it with an appropriate 16-pin socket or solderless breadboard.
Special Order
Shipping from $9.90
+349 more from our supplier in 7-10 days
Our Code: SKU-010643
Supplier Link: [Pololu MPN:5343]

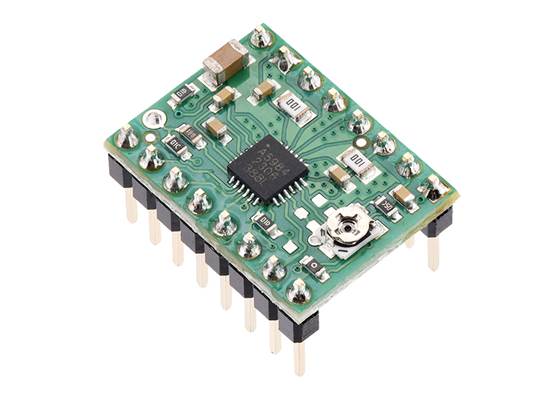

A5984 Stepper Motor Driver Carrier, Adjustable Current (Soldered Header Pins). |

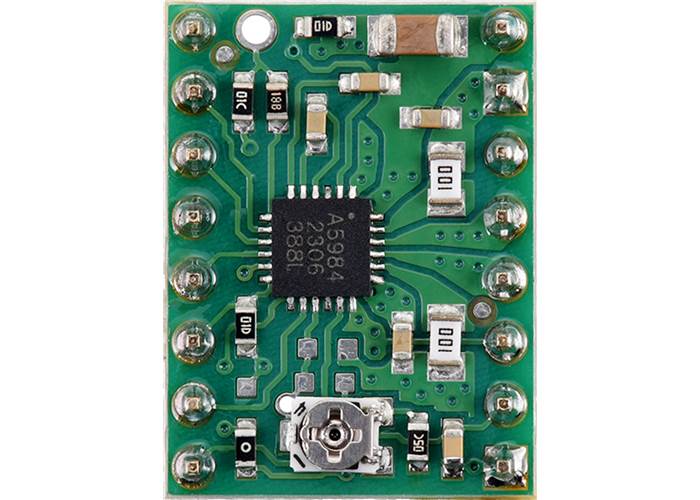

A5984 Stepper Motor Driver Carrier, Adjustable Current (Soldered Header Pins), top view. |
This product is the adjustable current A5984 carrier, which has a potentiometer for setting the current limit and can deliver up to approximately 1 A continuous per phase without a heat sink or forced air flow (2 A peak). It has soldered headers as shown in the pictures above, so no soldering is required to use it with an appropriate 16-pin socket or solderless breadboard. See the item #5342: A5984 Stepper Motor Driver Carrier, Adjustable Current product page for more information about this driver.
| Size: | 0.6″ × 0.8″ |
|---|---|
| Weight: | 2.3 g |
| Current limit: | adjustable (potentiometer), 1A max continuous |
|---|---|
| Header pins: | soldered |
| PCB dev codes: | md46a |
|---|---|
| Other PCB markings: | 0J15023 |
