This version is item #5340 with soldered header pins , so no soldering is required to use it with an appropriate 16-pin socket or solderless breadboard.
Special Order
Shipping from $7.90
+61 more from our supplier in 7-10 days
Our Code: SKU-010641
Supplier Link: [Pololu MPN:5341]

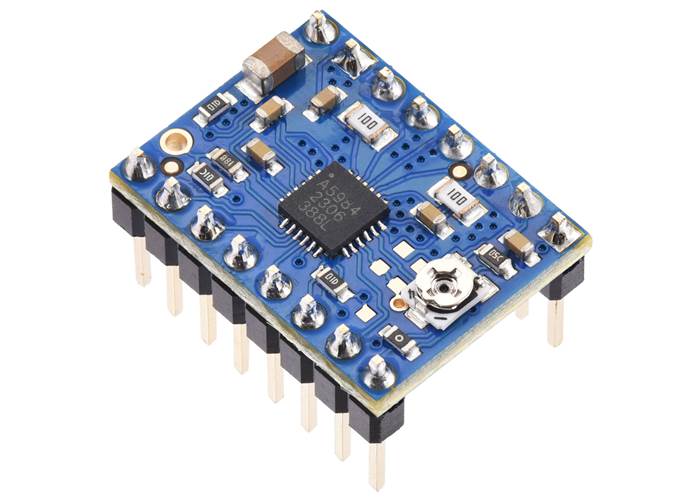

A5984 Stepper Motor Driver Carrier, Adjustable Current, Blue Edition (Soldered Header Pins). |

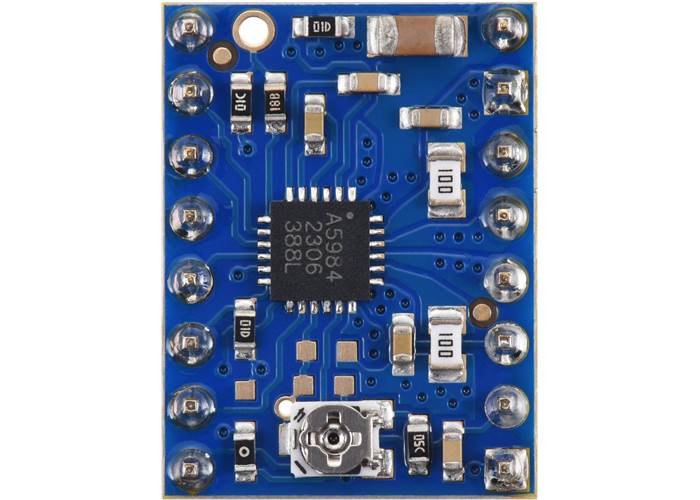

A5984 Stepper Motor Driver Carrier, Adjustable Current, Blue Edition (Soldered Header Pins), top view. |
This product is the adjustable current, Blue Edition A5984 carrier, which has a potentiometer for setting the current limit and a four-layer PCB for improved thermal performance, allowing it to deliver up to approximately 1.2 A continuous per phase without a heat sink or forced air flow (2 A peak). It has soldered headers as shown in the pictures above, so no soldering is required to use it with an appropriate 16-pin socket or solderless breadboard. See the item #5340: A5984 Stepper Motor Driver Carrier, Adjustable Current, Blue Edition product page for more information about this driver.
| Size: | 0.6″ × 0.8″ |
|---|---|
| Weight: | 2.5 g |
| Current limit: | adjustable (potentiometer), 1.2A max continuous |
|---|---|
| Header pins: | soldered |
| PCB dev codes: | md46b |
|---|---|
| Other PCB markings: | 0J15026 |
