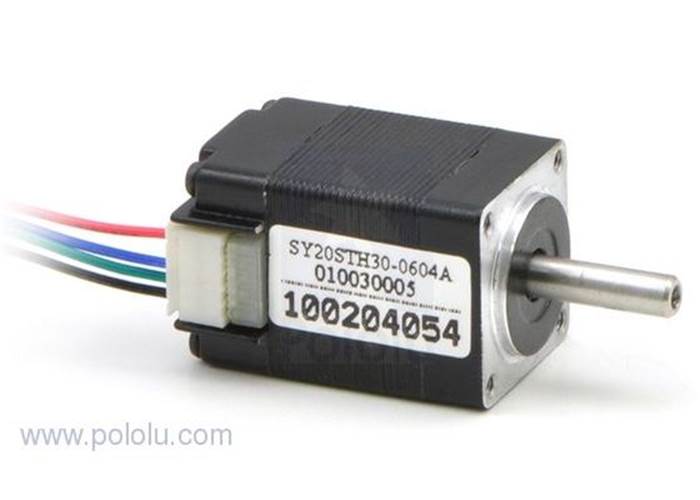

• Stepper motor bipolar, 200 steps per rev, 20x30mm, 3.9V, 600mA
    Stepper motor bipolar, 200 steps per rev, 20x30...

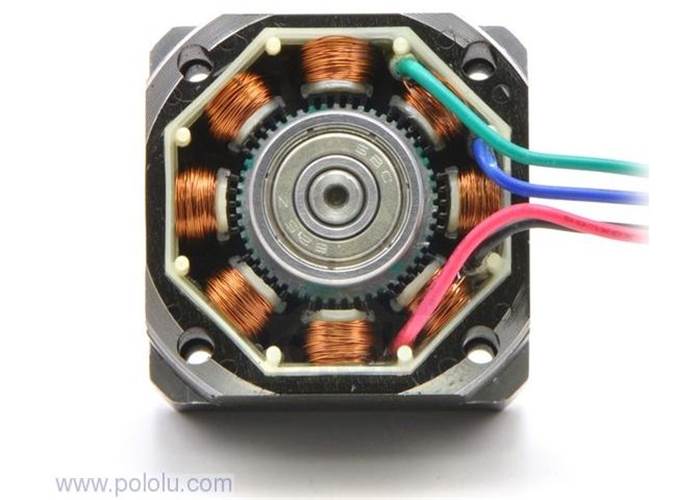

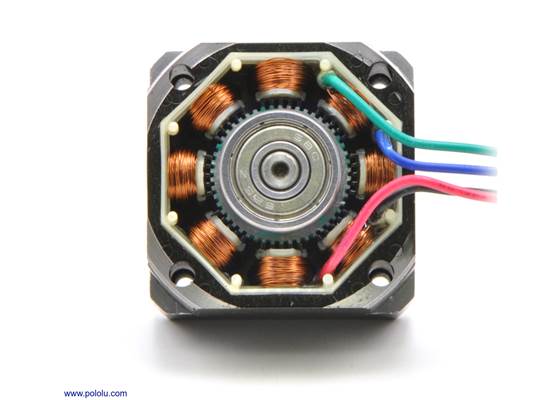

  • The inside of a bipolar stepper motor
    The inside of a bipolar stepper motor
  • Stepper motor bipolar dimensions
    Stepper motor bipolar dimensions
  • Pull-out torque of stepper motor bipolar, 200 steps per rev, 20x30mm, 3.9V, 600mA
    Pull-out torque of stepper motor bipolar, 200 s...

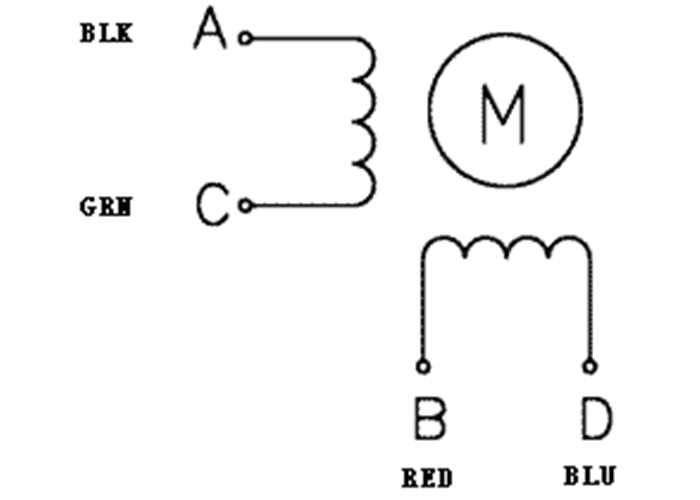

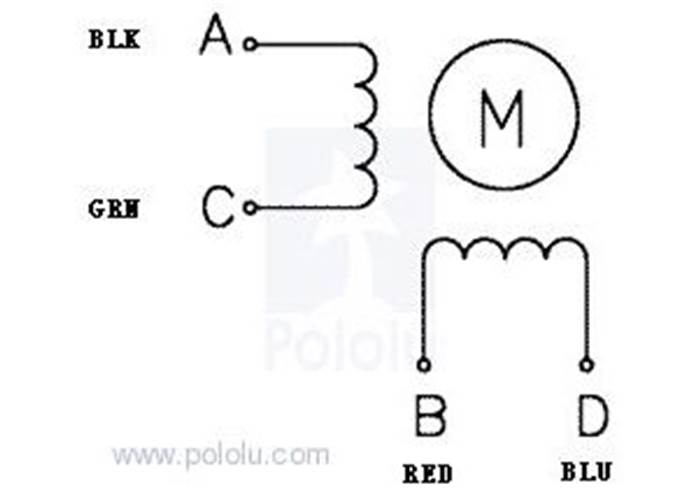

  • Bipolar stepper motor wiring diagram
    Bipolar stepper motor wiring diagram

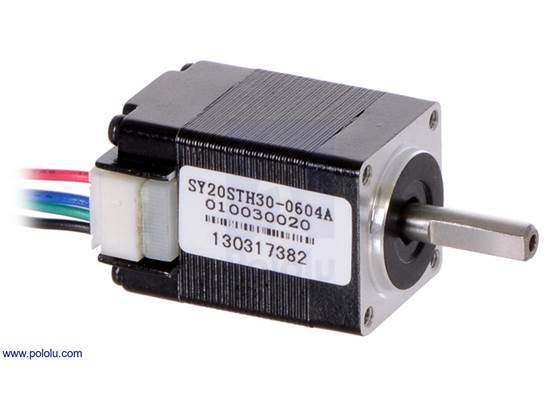

Stepper Motor - Bipolar, 200 Steps / Rev, 3.9V 600mA, 180g-cm torque

Code: MEC-30064
$16.32
In Stock In Stock

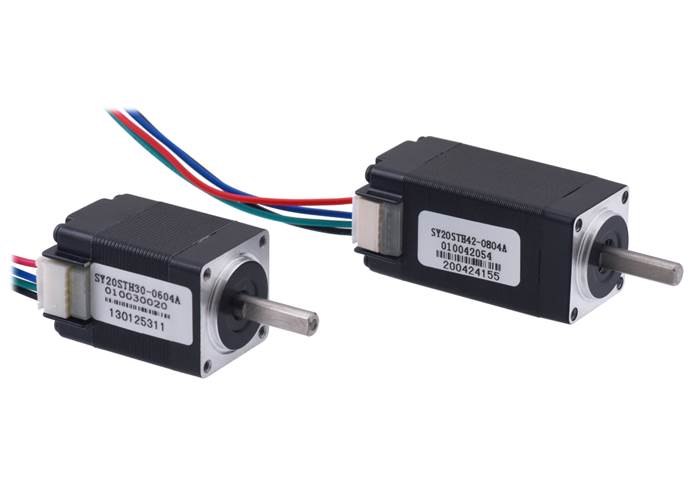

This small hybrid bipolar stepping motor has a 1.8° step angle (200 steps/revolution). Each phase draws 600 mA at 3.9 V, allowing for a holding torque of 180 g-cm (2.5 oz-in). With a weight of 60 g, this is the smallest stepper motor we carry

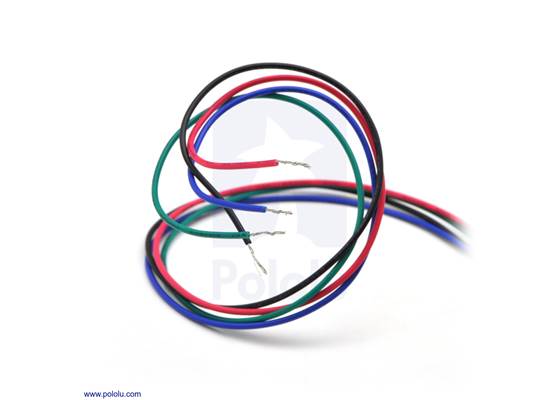

What's inside a stepper motorThis small hybrid bipolar stepping motor has a 1.8° step angle (200 steps/revolution). Each phase draws 600 mA at 3.9 V, allowing for a holding torque of 180 g-cm (2.5 oz-in). The motor has four color-coded wires terminated with bare leads. Our 4mm universal mounting hub can be used to mount objects on the stepper motor’s 4mm-diameter output shaft.

Dimensions

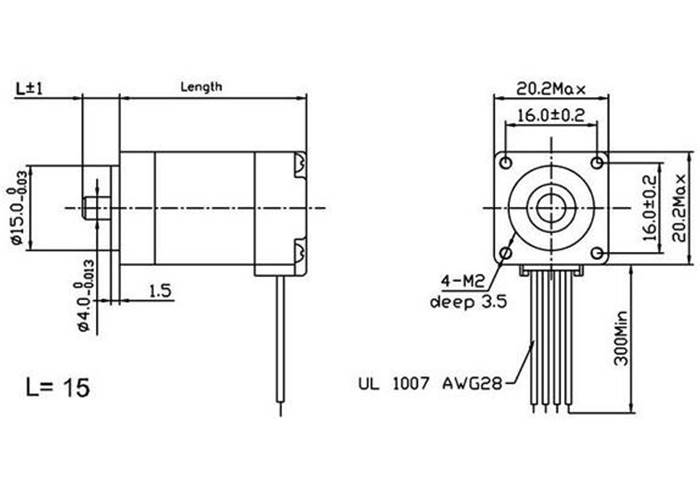

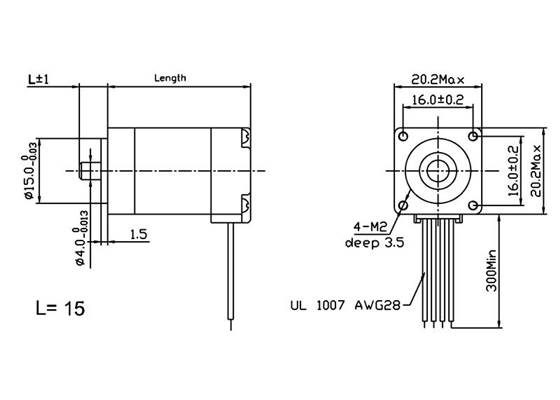

The following diagram shows the stepper motor dimensions in mm. The dimension labeled “Length” is 30 mm. The output shaft has a length of 15 mm and a diameter of 4 mm.

Stepper motor dimensions

Stepper Motor Applications

Stepper motors are generally used in a variety of applications where precise position control is desirable and the cost or complexity of a feedback control system is unwarranted. Here are a few applications where stepper motors are often found:

  • Printers
  • CNC machines
  • 3D printer/prototyping machines
  • Laser cutters
  • Pick and place machines
  • Linear actuators
  • Hard drives
  • Size: 20 mm square x 30 mm (not including the shaft)
  • Weight: 60 g (2 oz)
  • Shaft diameter: 4 mm
  • Current rating: 600 mA per coil
  • Voltage rating: 3.9 V
  • Lead length: 12 in
  • Resistance: 6.5 Ohm per coil
  • Holding torque: 180 g-cm (2.5 oz-in)
  • Steps per revolution: 200

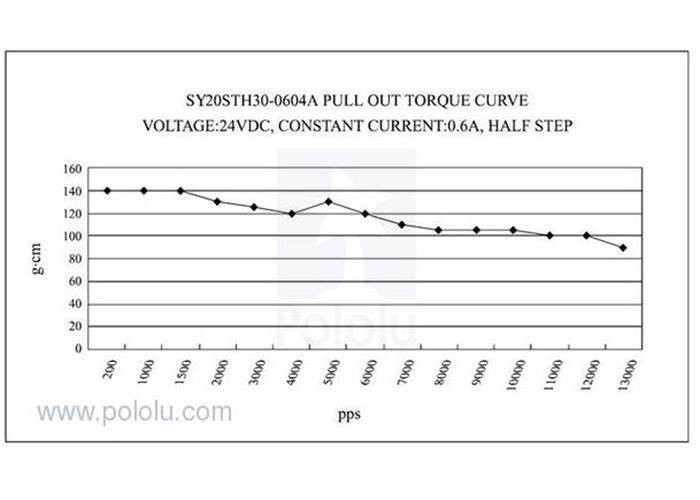

Pull-out torque of stepper motor bipolar, 200 steps per rev, 20x30mm, 3.9V, 600mA

Pull-out torque of stepper motor bipolar, 200 steps per rev, 20x30mm, 3.9V, 600mA
