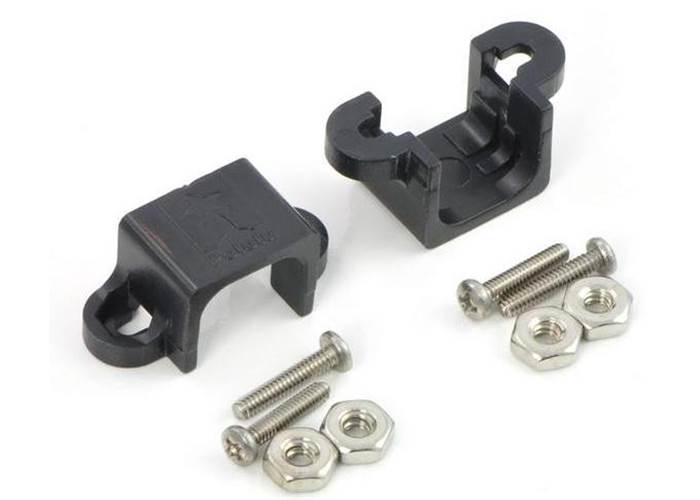

    Standard gearmotor brackets
  • Standard gearmotor brackets dimensions

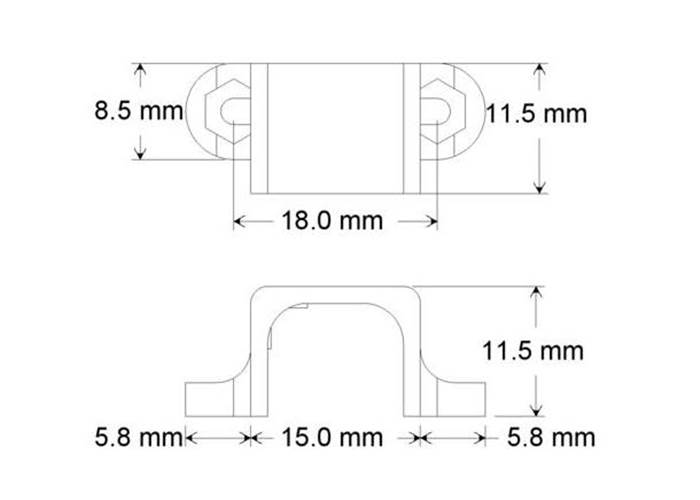

    Standard gearmotor brackets dimensions
  • Bracket fitted to micro gear motor

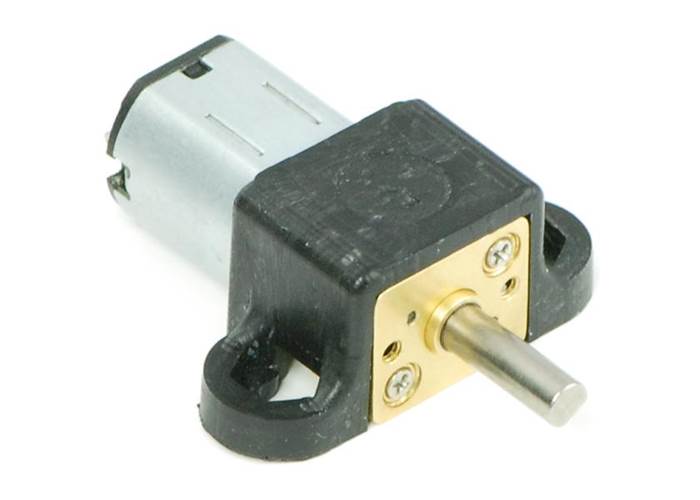

    Bracket fitted to micro gear motor
  • Bracket fitted to gearmotor (2)

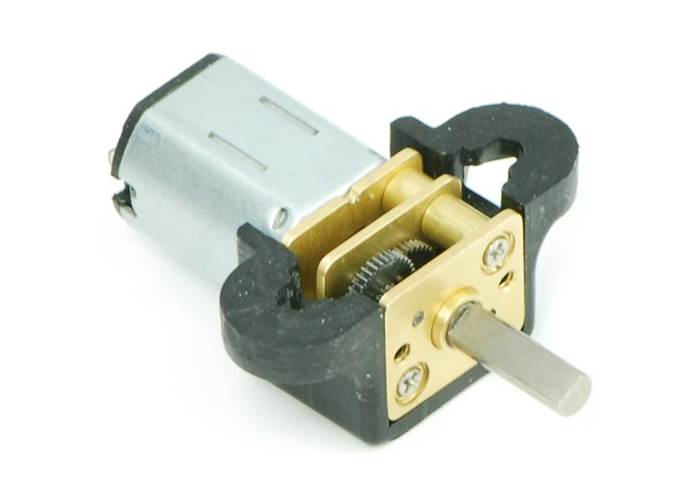

    Bracket fitted to gearmotor (2)

Pololu Micro Metal Gearmotor Bracket Pair - Black

Code: MEC-30010
AUD $6.55 - Inc Tax
Availability: In Stock

These "Black" standard sized brackets are ideal for mounting our micro metal gear motors. Made of black plastic these brackets enclose the gears in the micro metal gear motors and feature mounting tabs to easily secure the motor to a chassis. These brackets are sold as a pair.

Overview

Black micro metal gear motor bracket

These brackets have the mounting holes closer to the motor shaft than the extended brackets do. These means they are suited to thin wheels only. For a version that works with the fatter 42x19mm wheels see the extended brackets.

The brackets are designed to fit the common 10 x 12 x 26 mm Sanyo style gear motors (12GN series / NA1s, NA2S etc) including our own micro metal gear motors and others such as Solarbotics GM12a, GM13a etc.

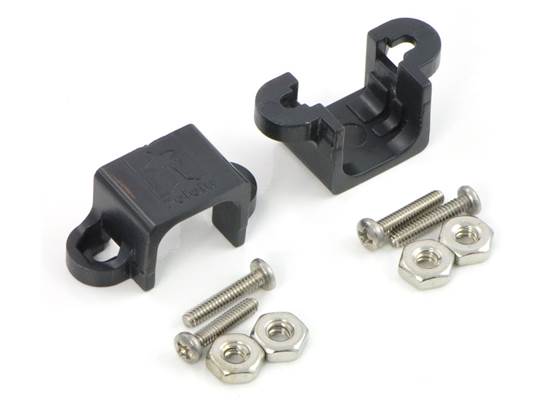

The kit includes:

  • 2 x Black plastic brackets
  • 4 x Mounting nuts & bolts

An extended version is also available that is better suited for some situations such as our 42 x 19mm wheels with encoders.
